When it comes to oil and gas operations, especially in harsh offshore and surface wellhead applications, the margin for error is zero. High pressures, extreme temperatures, and corrosive fluids require sealing solutions that go far beyond standard industrial O-rings.

Enter the FS Seal (often referred to as a Flexible System or Floating System Seal). Designed specifically for severe service environments, the FS Seal has become an industry standard for casing hangers, tubing hangers, and wellhead equipment.

What is an FS Seal?

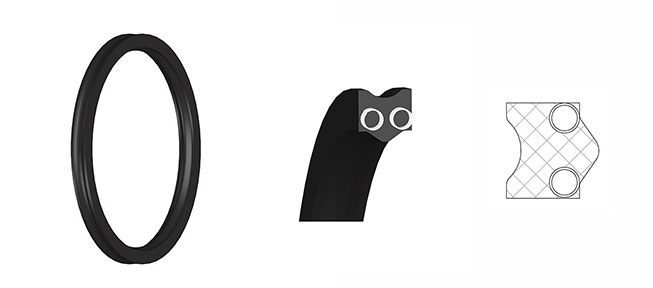

An FS Seal is an elastomeric, heavy-duty seal designed to hold high pressure in large-diameter annular spaces. It features an integrated spring combined with a specially formulated elastomer body.

Unlike traditional O-rings or S-seals that rely purely on rubber compression, FS Seals are engineered with anti-extrusion back-up rings integrated directly into the seal design. This unique construction allows them to handle extreme differential pressures without tearing or extruding into mechanical clearances.

Key Features and Advantages

What makes the FS Seal the go-to choice for wellhead and drilling equipment manufacturers?

* Exceptional Pressure Resistance: Standard FS Seals are designed to handle pressure differentials up to 10,000 PSI to 15,000 PSI (690 to 1030 bar) or higher, depending on the material blend.

* Integrated Anti-Extrusion Protection: Built-in spring prevent the elastomer from expanding into clearance gaps under intense pressure.

* Substantial Radial Tolerance: Designed with a large cross-section, FS Seals can accommodate wider tolerance gaps and minor pipe ovality without losing seal integrity.

* Bidirectional Sealing: They are capable of sealing pressure from both sides, providing reliable double-barrier protection in critical wellhead cavities.

• Easy Installation: Despite their heavy-duty capability, they are designed for standard ISO/API seal grooves and can be easily installed on-site or in offshore environments.
•
• Common Applications in Oil & Gas

FS Seals are primarily deployed in critical API 6A and API 17D applications where fluid containment is vital for safety and operational uptime:

1. Casing Hangers & Tubing Hangers: Securing the annulus between concentric pipe strings in surface and subsea wellheads.

2. Wellhead Connectors & Packoffs: Providing secondary or primary fluid isolation in high-pressure wellhead housings.

3. Blowout Preventer (BOP) Stacks: Ensuring pressure isolation in high-stress drilling controls.

4. Subsea Trees: Protecting subsea flow paths from leaking into the marine environment.

Material Selection Matters

The performance of an FS Seal depends heavily on choosing the right material for the operational environment:

Summary

In modern energy exploration, equipment reliability is directly linked to seal performance. The FS Seal stands out as a robust, field-proven solution that bridges the gap between elastomeric flexibility and metal-to-metal seal reliability. By preventing catastrophic gas or fluid leaks, FS Seals protect both valuable assets and the environment.
